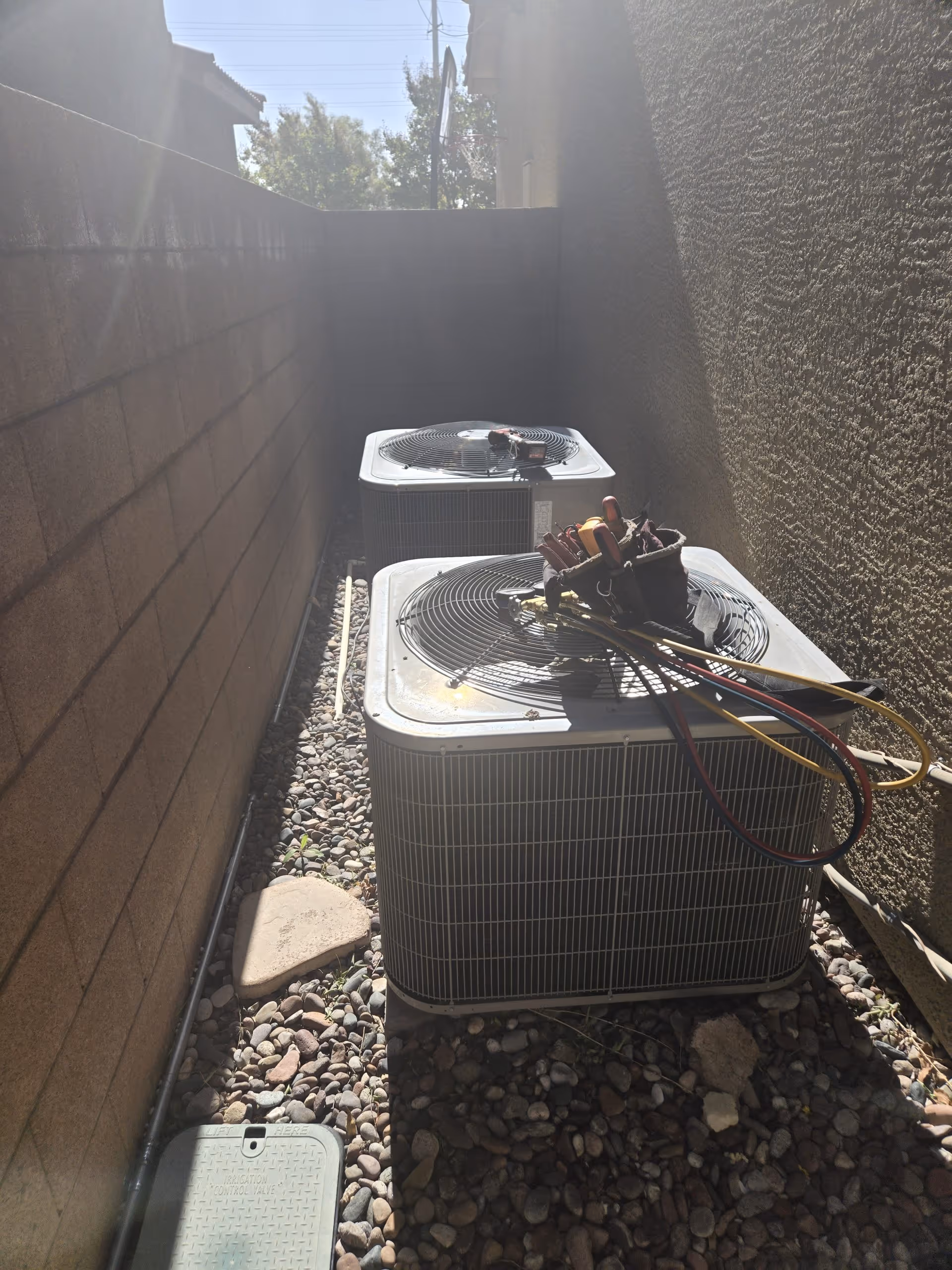

A McLean homeowner called Tim Whistler Plumbing about their cooling system not keeping up the way it used to. The home had two outdoor AC condenser units installed in a narrow side yard, each serving a different zone of the house, and the upstairs zone was lagging noticeably behind the downstairs. Both systems were running, both were producing some cold air, but neither one was delivering the comfort the homeowner expected on a hot DMV afternoon. They wanted a real diagnosis, not a guess.
Dual outdoor unit setups need to be tested individually because each unit has its own refrigerant circuit, its own electrical components, and its own performance characteristics. The tight side-yard installation made physical access to both units more difficult than a standard backyard setup. And because both systems were technically still running, the homeowner's previous attempts to troubleshoot from the thermostat had not pointed at any obvious failure. The actual cause was electrical, and finding it required hooking up the right diagnostic equipment.

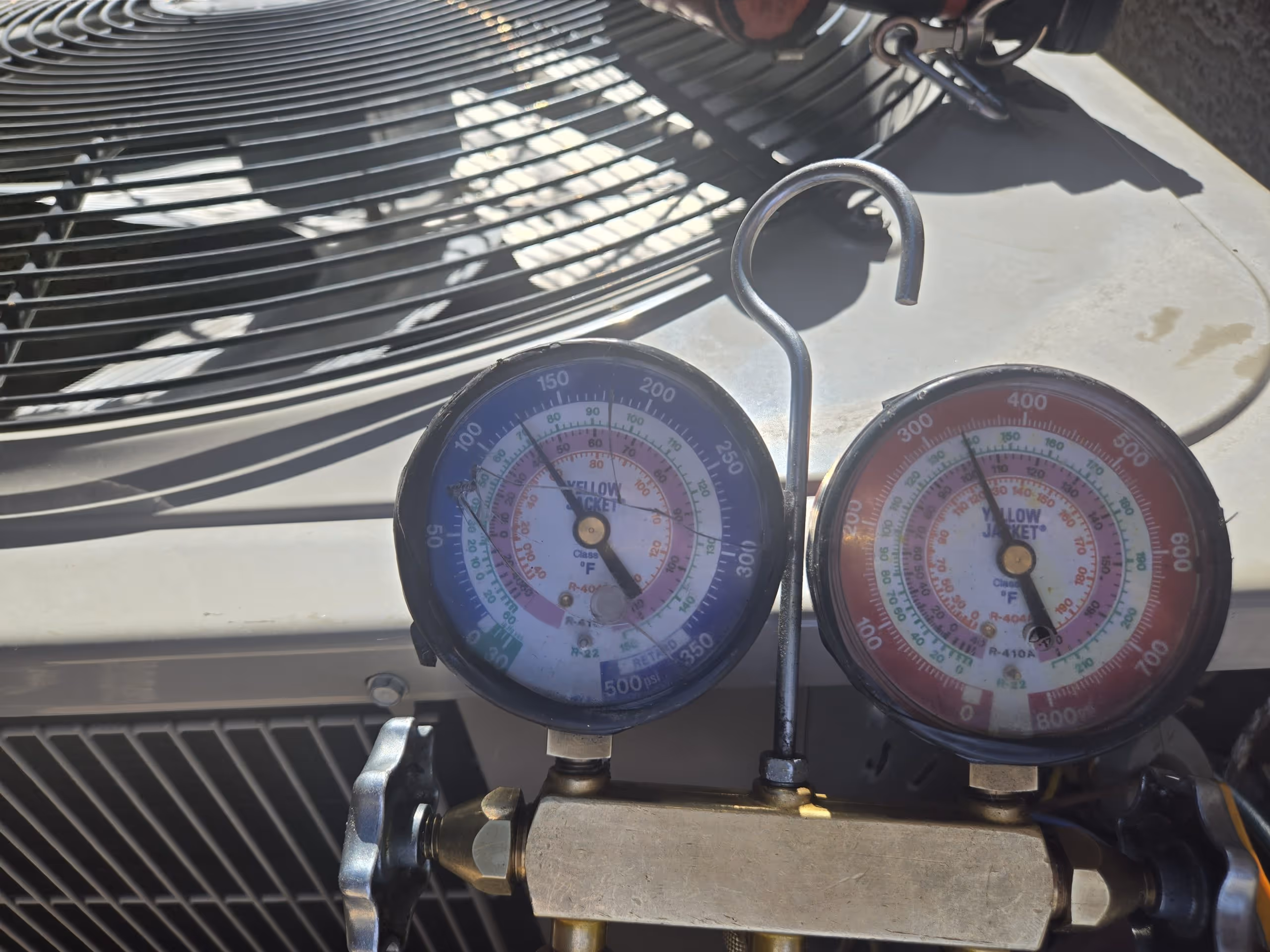

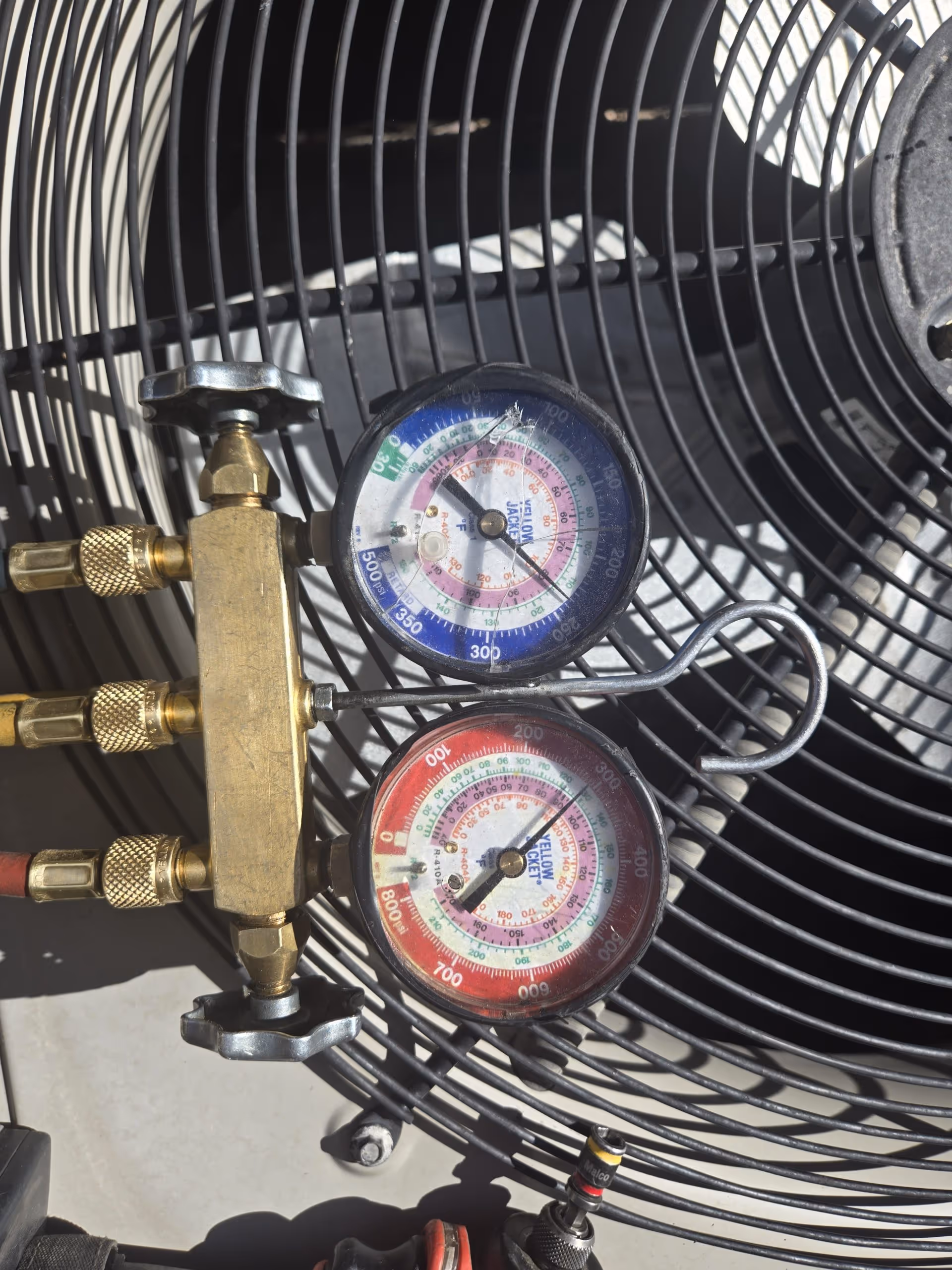

Our NATE-certified technician started with a full visual inspection of both outdoor condensers, then connected manifold gauge sets to the high and low sides of each refrigeration circuit. The pressure readings on the lagging unit showed the telltale pattern of a weakening dual run capacitor: enough charge to start the compressor and condenser fan motor, but not enough to keep them running at their rated efficiency. We pulled the cover, confirmed visually that the capacitor (a 45+5 MFD 440/370 VAC dual run unit) was bulged and on its way out, and replaced it with a rated equivalent. After re-energizing the system, we ran a full set of pressure and performance tests on both units to confirm the upstairs zone was back to spec.
A weak capacitor is one of the most common AC failures we see in the DMV, especially in older units that have been through a decade of summer heat. The part itself is inexpensive, but it stresses the compressor and the condenser fan motor every time it tries to start, and a dying capacitor that gets ignored long enough will take a much more expensive component down with it.
The upstairs zone was cooling normally within an hour of the new capacitor going in. The homeowner avoided what would have been an inevitable compressor failure if the weak capacitor had been left in service through the rest of the summer. Both outdoor units are now performing to spec, the refrigerant levels checked out clean on both circuits, and we left the homeowner with notes on what was replaced and recommendations for a seasonal tune-up before next summer.
If your AC is running but not keeping up, the problem is often something small and electrical that you can't see from the thermostat. Tim Whistler Plumbing handles AC diagnostics, capacitor and compressor replacement, refrigerant service, and full HVAC repair across McLean, Falls Church, Arlington, Bethesda, Silver Spring, Washington DC, and the rest of the DMV. Call 1-866-477-6190 for service. NATE-certified technicians, 24/7 emergency response.
